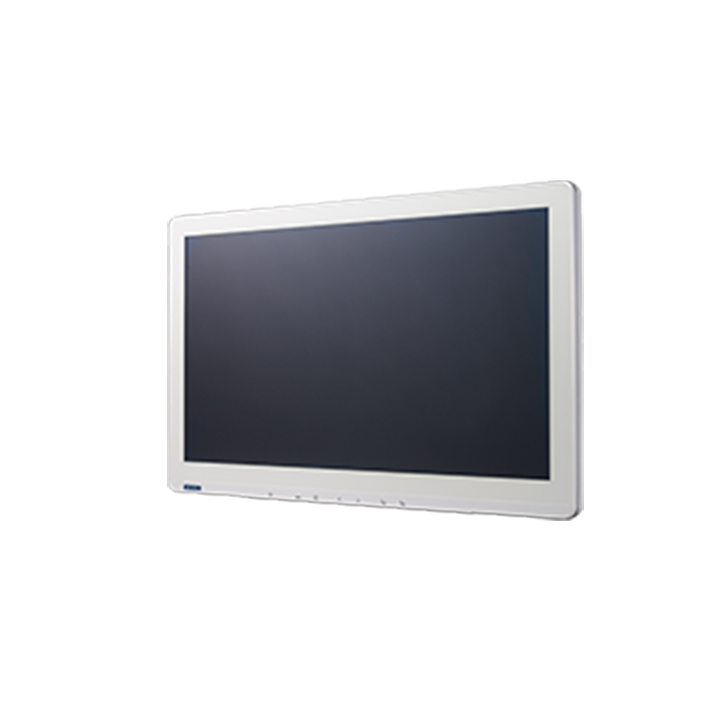

27” true-flat monitor with AR filter with high-brightness display with a high contrast ratio
FHD resolution (1920 x 1200)/UHD resolution (3840 x 2160)
DVI and RGB support resolutions of up to 1920 x 1200 @ 60 Hz and HDMI 2.0, DP 1.2, and SDI support resolutions of up to 3840 x 2160 @ 60Hz
Multi-standard (NTSC, PAL, SECAM) video input receiver
Operating temperature 0 ~ 40 °C/32 ~ 104 °F; storage temperature -20 ~ 60 °C/-4 ~ 140 °F
Video enhancement features14-bit LUT processing●DICOM Part 14 GSDF compliant●DICOM, clear, blue modes supported
Optional upgrade to an IP-based monitor with AVAS
Medical grade, front IP-65 rated and top IPX1 for easy cleaning
Certified EN60601-1/EN60601-1-2

27” surgical display with 4K 3840 x 2160 Resolution
High brightness display with a high contrast ratio, 1000 : 1
Multi-standard video support (NTSC, PAL, SECAM)
HDMI 2.0, DP 1.2, DVI, RGB support up to 1920 x 1200 @ 60 Hz
Optional video enhancement features: 14-bit LUT processing, DICOM Part 14 GSDF
compliant, and DICOM, clear, blue mode
Optional upgrade to an IP-based monitor with AVAS
Medical grade, front IP-65 rated and top IPX1 for easy cleaning
Certified EN60601-1/EN60601-1-2

32” True-Flat Surgical Monitor for Enhanced Imaging

True flat, full HD and UHD surgical monitor with an AR filter. Boasting a narrow edge of less than 24 mm (0.84 in), panel thickness of (0.78 in), and a weight of 8.90 ~ 10.40 kg (19.62 ~ 22.93 lb), the monitor ofers a compact and lightweight imaging solution for medical applications.

Equipped with true RGB color, DICOM Part 14 GSDF-compliant 14-bit LUT processing grayscale, hardware calibration support, and automatic input source detection, the PAX-332 surgical monitor ensures precise representation of grayscale images. Moreover, the monitor features hybrid gamma encoding (HGE) technology to facilitate simultaneous monitoring of color and monochrome images on the same screen, particularly for operating room (OR) applications.
