Why Quasar eLite?
High Performance Operating Lighting:
Designed and manufactured in the United Kingdom, the Quasar eLite range of operating theatre lamps impresses clinical staff every time and it has with the best cost-quality ratio worldwide.
High Performance Operating Light
Near Perfect Colour Rendition with Red Balance Control
For the best visualisation of tissue during surgery. A unique feature to Quasar® eLite, Red Balance Control, provides the user with the option to adjust the balance of red light to match their own optical colour response. This allows the user to fine-tune the light ensuring minimal eye strain by making the light do the work instead of the eye.
Fat Beam Technology
Quasar® eLite provides the very best light beam quality of any other product. Higher light flux ensures the biggest beams of light in the business, bigger illuminated fields and more light across the full width of the illuminated area.
- High light intensity across the full illuminated area for uniform vision
- Large wound sites can be easily examined
- Beam size is adjustable to user preference
- 420mm maximum beam diameter
Designed to Minimise Infections
Easy to clean, sealed light head, remote controls and anti-microbial coatings.
Premium Quality Movement
Low weight light head and perfectly balanced arm system.

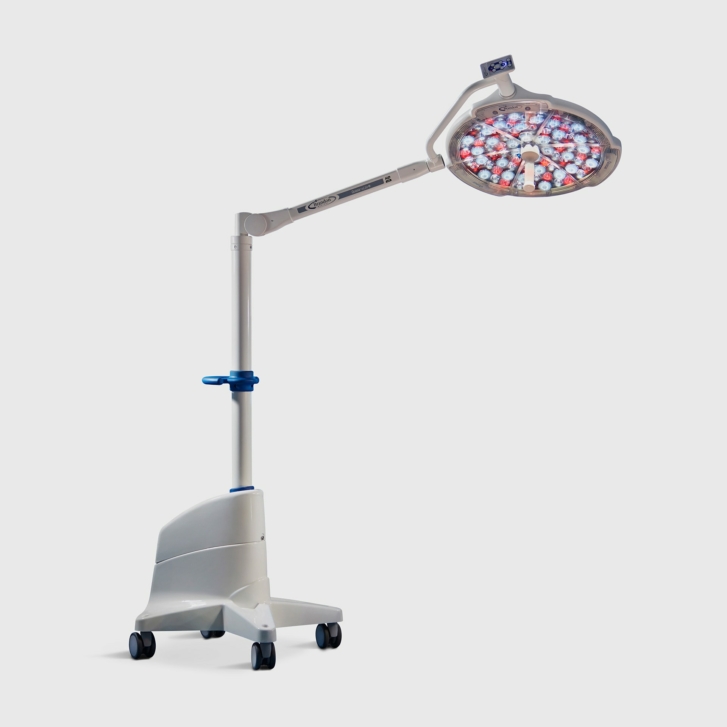

“Quasar eLite” Qe30 HD-LED Mobile Surgical Light
Qe30MO Mobile Light – standard model
Qe30MEL Mobile Light – with Emergency Battery Power Unit
The “Quasar eLite Qe30” HD-LED Mobile Surgical Light is a compact, high-Performance Operating Theatre Light designed and manufactured in the UK by Brandon Medical. The product was designed to bridge the gap between large and heavy OT Lights and smaller Procedure Lights, to deliver a compact powerful unit in a portable and mobile package. “Quasar eLite Qe30” deploys Brandon’s Patented HD-LED lighting technology to deliver powerful lighting performance together with excellent colour rendition using our unique ‘red-balance’ control. This model also incorporates increased light intensity, improved optical performance and an upgraded User Interface offering an even greater range of functional adjustments and applications.
“Quasar eLite Qe30” is ideal also for use as a ‘back-up’ Operating Light, or for locations where mains power supply are unstable/unreliable, the Qe30MEL model has an
integrated Emergency Battery Power UNIT (BEPU). This provides 1 – 4 hours autonomy under full load conditions, enabling surgical procedures to continue uninterrupted during mains power failure.
Brandon BEPU’s use sophisticated switch-mode charging and battery monitor modules for optimized in-field performance and service.
“Quasar eLite” Qe30 HD-LED Mobile Surgical Light
Product features
• Brandon ‘HD-LED’ patented technology
• Unique red balance control
• LED life < 60,000 Hours
• Maximum Light Intensity (Ec) 160,000 Lux @ 1Metre
• CRI – Ra = 95 R9 = 95 Colour Temperature range 3,100K to 5,000K
• Solid state focusing (no moving parts) Adjustable light field dia. 150 – 320mm (d10)
• Adjustable light intensity 100% to 5%
• IP54 ingress protection
• Removable sterilizable/autoclavable handle
• Technical standard – IEC(EN)60601-2-41
• Manoeuverable castored base with locking wheels
• Economical (mains) power consumption > 50W
• Input voltage 100 – 240V AC 50/60Hz Operating voltage 24V DC
• BEPU Power Unit 1 – 4 Hours Autonomy, “Mains Healthy” Indicator, Low voltage disconnect, Auto changeover, Charger fail
alarm
| QUASAR ELITE MOBILE OPERATING THEATRE LAMPS | DESCRIPTION |
|
Qe30MO |
Quasar Qe30 (160,000 Lux), integral power supply |
|
Qe30MEL |
Quasar Qe30 (160,000 Lux), emergency power unit. 3 hrs |
|
Qe60M |
Quasar eLite (160,000 Lux), integral power supply |
|
Qe60MS |
Quasar eLite (160,000 Lux), integral power supply with Schuko style plug |
|
Qe60MU |
Quasar eLite (160,000 Lux), integral power supply with US style plug |
|
Qe60MEL |
Quasar eLite (160,000 Lux), emergency power unit. 3 hrs |
|
Qe6HM |
Quasar eLite (160,000 Lux), mobile OT light with HD Camera |
|
Qe6HMEL |
Quasar eLite (160,000 Lux), mobile OT light, HD Camera & emergency power supply |
Download Quasar eLite brochure
